The new ULTRA -TURRAX® high-performance disperser by IKA®

For volumes of 1 to 2.000 ml (H2O)
The spectrum of applications ranges from homogenizing waste water samples to the use in laboratory reactors, to dispersion tasks under vacuum / pressure and sample preparation in medical diagnostics
Three types of shaft bearings
Standard version with digital display
Rotor-Stator configurations have thirty years of proven, guaranteed comparability of test results

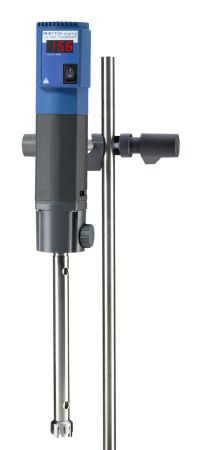

T 25 digital ULTRA-TURRAX®
Motor rating input 500 W
Motor rating output 300 W
Volume range min. (H2O) 0.001 l
Volume range max. (H2O) 2 l
Viscosity max. 5000 mPas
Speed range 3400 - 24000 rpm
Speed deviation 1 %
Speed control stepless
Speed display LED
Noise without element 73 dB(A)
Extension arm diameter 13 mm
Extension arm length 175 mm
Process type batch
Dimensions (W x H x D) 65 x 240 x 80 mm
Weight 1.6 kg
Permissible ambient temperature 5 - 40 °C
Permissible relative moisture 80 %
Protection class according to DIN EN 60529 IP 20
RS 232 interface no
Analog output no
Voltage 220 - 240 / 100 - 120 V
Frequency 50/60 Hz
Power input 500 W
