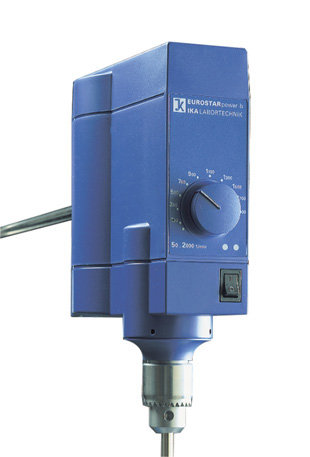

Mixing/Overhead Stirrers
Powerful laboratory stirrer for tasks up to the - high viscosity - range.
Constant speed by microprocessor control
Infinitely adjustable without gear shifting
Slim casing
Quiet operation
Safety circuit
Non-locking, overload capabilities
Push-through agitator shafts
Enhanced safety as a result of smooth start
Analog recording of speed parameters is possible
Technical Data
Stirring quantity max. (H2O) 40 l
Motor rating input 130 W
Motor rating output 110 W
Speed display scale
Speed range 50 - 2000 rpm
Viscosity max. 50000 mPas
Output max. at stirring shaft 105 W
Permissible ON time 100 %
Torque max. at stirring shaft 60 Ncm
Torque max. at stirring shaft at 60 1/min (overload) 60 Ncm
Torque max. at stirring shaft at 100 1/min 60 Ncm
Torque max. at stirring shaft at 1.000 1/min 60 Ncm
Speed control stepless
Stirring element fastening chuck
Chuck range min. diameter 0.5 mm
Chuck range max. diameter 10 mm
Hollow shaft, inner diameter 11 mm
Hollow shaft (push-through ¿ when stopped) yes
Fastening on stand extension arm
Extension arm diameter 16 mm
Extension arm length 200 mm
Torque display no
Nominal torque 0.6 Nm
Dimensions (W x H x D) 80 x 253 x 190 mm
Weight 3.8 kg
Permissible ambient temperature 5 - 40 °C
Permissible relative moisture 80 %
Protection class according to DIN EN 60529 IP 42
RS 232 interface no
Analog output yes
Voltage 230 / 115 / 100 V
Frequency 50/60 Hz
Power input 130 W
