Rotary Evaporator
The newly developed product line from IKA® in ergonomic, compact design with innovative functions to improve operating results. Rotary evaporators with integrated heating bath HB 10 digital (3 litre) incl. dry ice condenser.

Heating bath with adjustable safety circuit, "stand alone" operation possible, pivoting safety hood as accessory
Safe and simple operation through ergonomically shaped operator unit in the front area
Motorized lift (stroke 140 mm) with "safety stop" function, if the power cuts out the evaporator piston is automatically lifted out of the heating bath
Adjustable end position recognition to protect the glass from breaking
Speed range from 20 to 270 rpm
Smooth start from 100 rpm
Digital speed display
Moves right and left in interval operation for the drying process
Timer function for time lapse controls
Water-oil heating bath with integrated carry handles with safe handling
Heats up quickly because of optimized bath volumes
Cooling surface 1,200 cm²
Push-off mechanism to loosen tightly fitting pistons
Digital water - oil heating bath with integrated carry handles
Temperature control of the heating bath by a micro controller
Digital temperature display
Infrared interface for data transfer from the heating bath to the drive unit
RS 232 interface for PC remote operation with labworldsoft
Automatic operation with labworldsoft
Suitable for DIN EN 12697-3 (Asphalt test for hot asphalt)

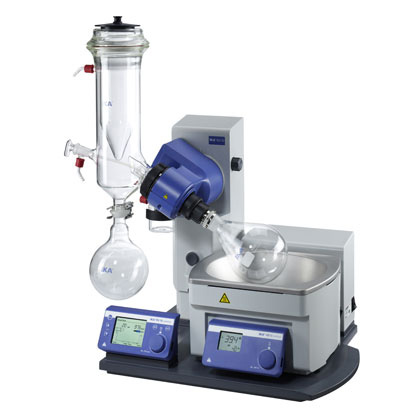

RV 10 digital with Dry Ice Condenser
Type of cooling vertical
Cooling surface 620 cm2
Motor principle DC
Speed range 20 - 280 rpm
Lift Motor
Stroke 140 mm
Heating temperature range room temp. - 180 °C
Heat output 1300 W
Heat control accuracy 1 ±K
Bath volume max. 3 l
Vacuum controller integrated no
Dimensions (W x H x D) 500 x 430 x 410 mm
Weight 20 kg
Permissible ambient temperature 5 - 40 °C
Permissible relative moisture 80 %
Protection class according to DIN EN 60529 IP 20
RS 232 interface yes
Voltage 220 - 240 V
Frequency 50/60 Hz
Power input 1400 W

Rotary Evaporator
